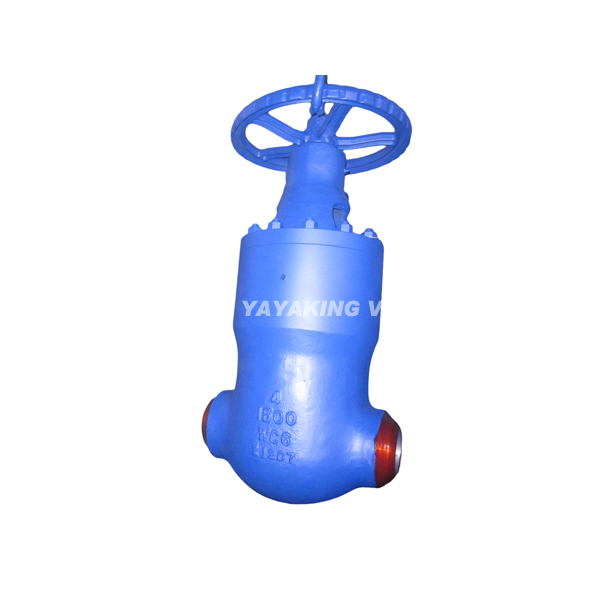

Parallel Slide Gate Valve

Short Description:

Yayaking Valve-Your Valve Expert

As the industrial parallel slide gate valve manufacturers come from China,Yayaking parallel slide gate valves are designed with positional seal, using the line pressure as a sealing force. The compressed spring between the two closure members provides an initial seal during low pressure conditions. The increasing line pressure will push the closure members with higer forces aginst each other which creates the primary seal. The higher the medium pressure, the better the sealing performance.

Specification for Yayaking Parallel Slide Gate Valve as follow:

Size: NPS 2″~40″ (DN50~DN1000)

Pressure Rating: ASME CLASS 600~2500（PN100~PN420）

Body material：Carbon steel,Alloy steel,Stainless Steel

End connection：RF, BW, RTJ

Operation：Manual, Pneumatic, Electric, Hydraulic

Applicable: High pressure and High temperature services such as Steam and Feedwater, etc.

Yayaking valve will be Your Excellent Choice!
